When do I need this adapter?

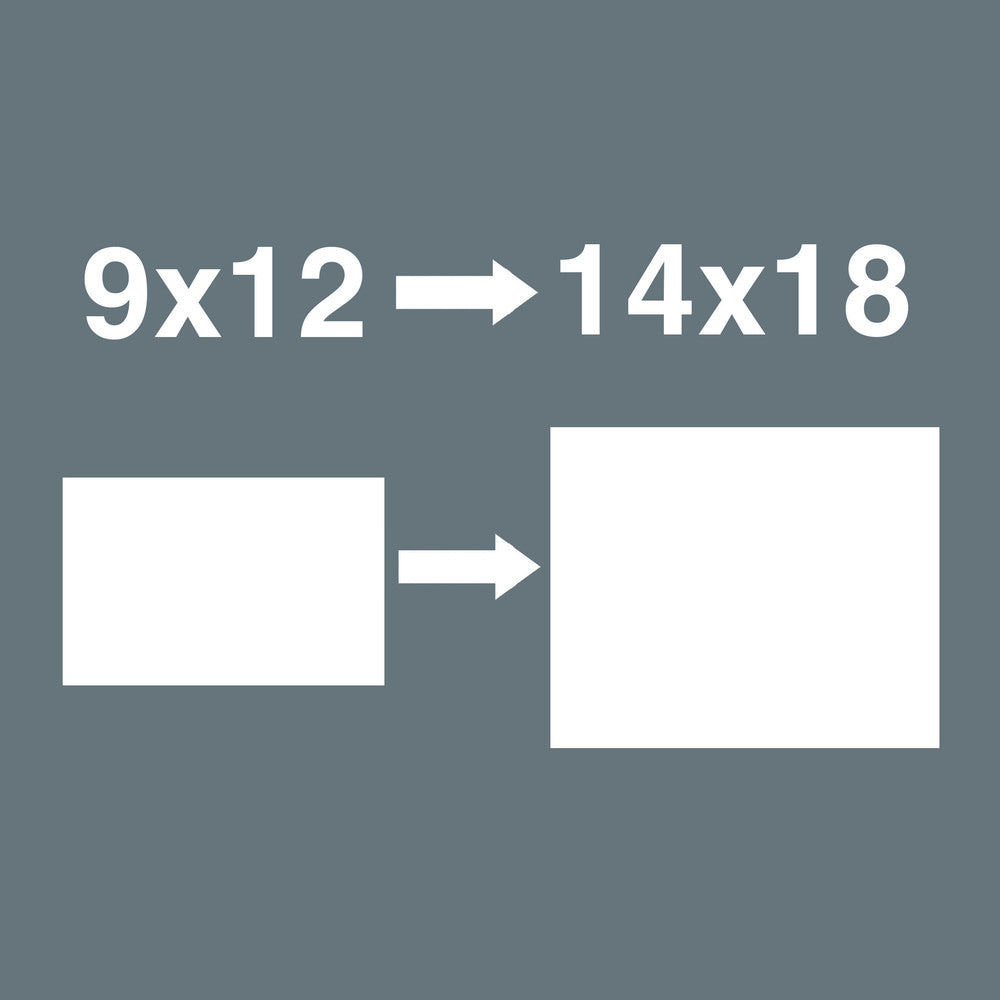

When you want to use 14x18mm insert tools, like our TWA tool holder adapters , with a 9x12mm Click-Torque wrench such as the Wera X 3 . It plugs into the wrench's 9x12mm mount and gives you a 14x18mm receiver.

Why use a 9x12mm wrench with 14x18mm tools?

Range. The Wera X 3 covers 20-100 Nm, which is below the 14x18mm X 4's 40 Nm minimum. With this adapter one wrench handles the lower torques and you keep using the 14x18mm adapters you already have.

What wrench do I use this with?

Any Wera Click-Torque X series wrench with a 9x12mm holder, such as the X 1, X 2 or X 3.

What torque do I use?

See our torque specs here , and stay within your wrench's range.

Wera 05078666001 7779/1 Adapter Insert, 9x12 mm to 14x18 mm

Name: Wera 7779/1 Adapter Insert, 9x12 mm to 14x18 mm
Brand: Wera
SKU: 05078666001
Price: 79.99 USD
Availability: InStock

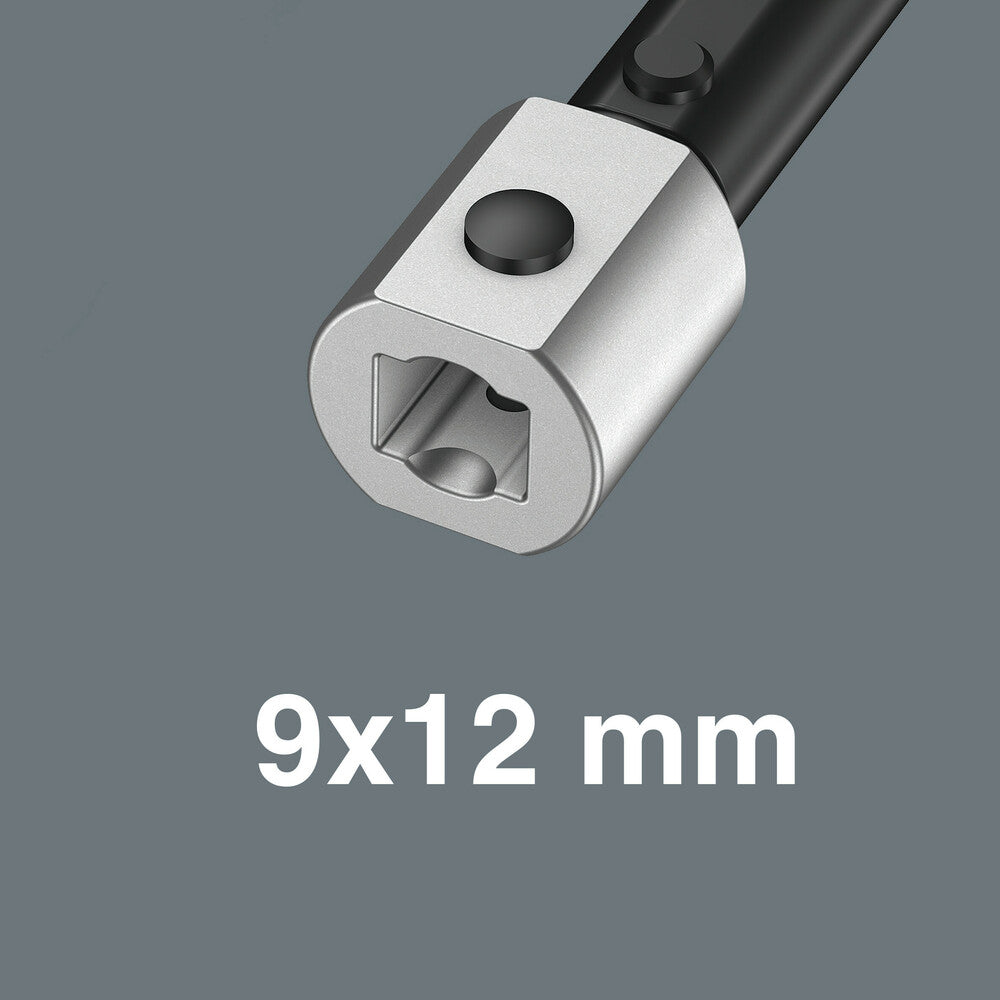

Wera 7779/1 adapter insert 9x12 mm mounted in a Click-Torque wrench

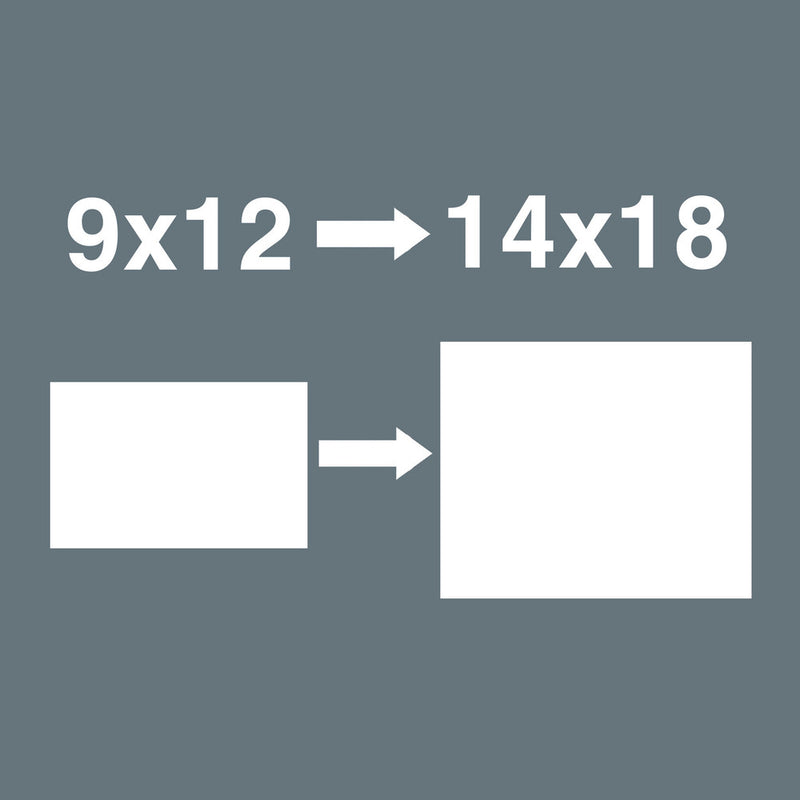

Wera 7779/1 adapter insert for 9x12 mm and 14x18 mm insert tools

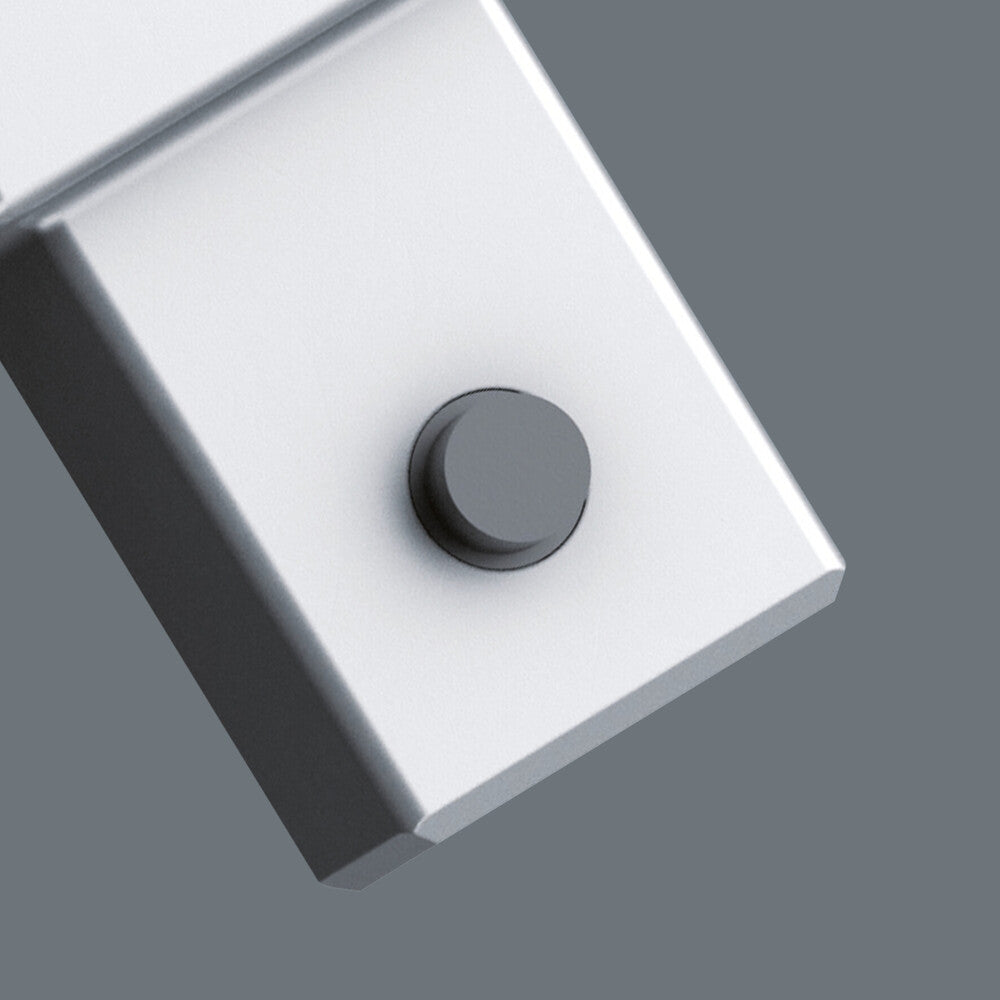

Wera 7779/1 adapter insert with pin lock

$98.20 $79.99

In-stock, Ready to ship
Backordered, ships soon

Low-Cost Shipping

QTY

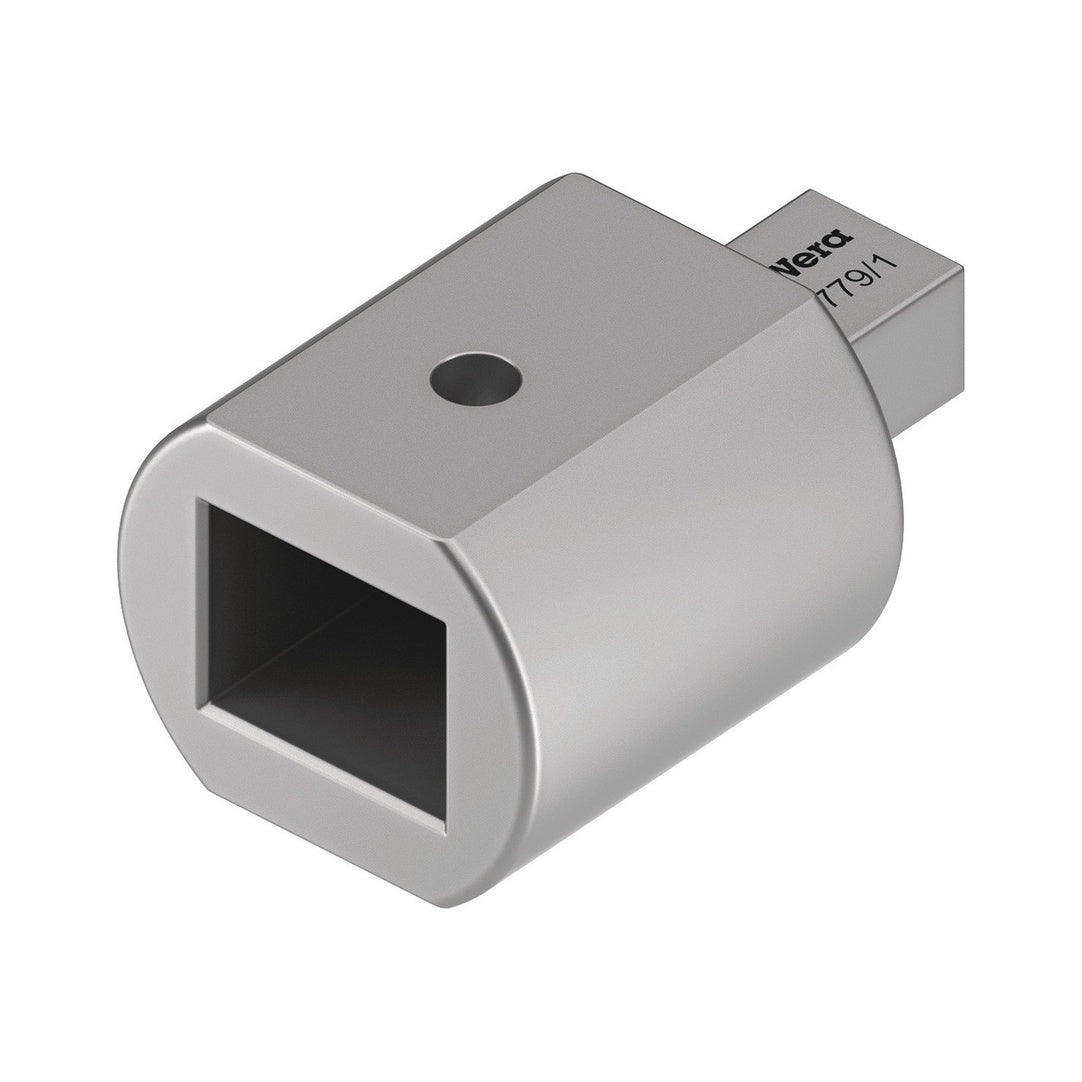

Wera’s 7779/1 adapter insert lets a 9x12 mm Click-Torque wrench drive 14x18 mm interchangeable insert tools. Use your existing 14x18 mm tools with the smaller 9x12 mm wrench without buying a second set.

🚀 PDX CNC's 14x18mm Torque Wrench Adapters

Plugs into a 9x12 mm wrench mount and takes 14x18 mm insert tools
Works with PDX CNC's 14x18mm TWA tool holder adapters
Overall length: 49 mm
Chrome-vanadium steel with safety pin
For Wera Click-Torque X series wrenches with a 9x12 mm holder, like the X 1, X 2 and X 3
Wrench and 14x18mm tools not included
